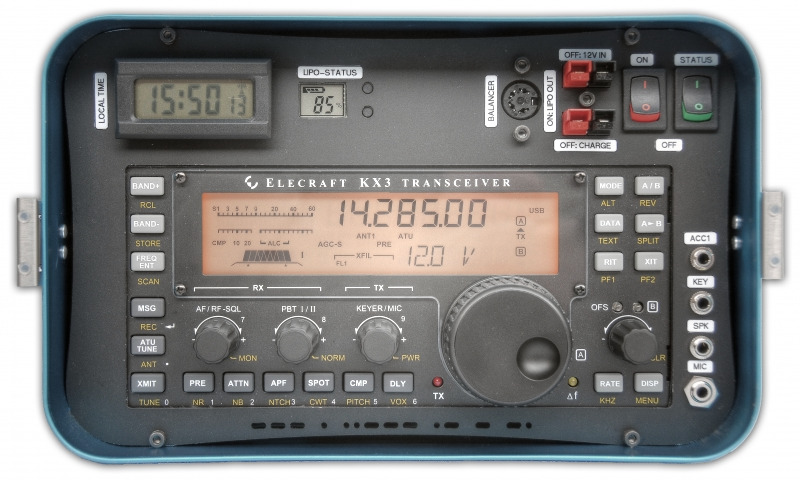

KX3 GoBox 2012
As I was contacted by a few HAMs where to get “my” box I would like to give you a little parts-overview. Unfortunately I`m not able to manufacture this box in a higher quantity so you will have to build it yourself. All the necessary stuff was purchased in european online-shops but for sure you will be able to find the same or equal parts in the U.S.
Watch some portable KX3 pics our
This box weighs 1,6 kg = 3,5 lbs – including the components listed below (except the charger) AND the KX3 with its ATU- and filter-option installed (no internal batteries) and a light weight (iphone) headset. My buddipole dipole antenna system weighs 2 kg = 4,4 lbs on top.
|component||description||where to get||pic|
|SIGG case||the box is made of aluminium|
very light weight
many different colors available
|SIGG online shop|
|LiPo battery||4.000 mAh LiPo battery 11,1 volt|
normally used for rc-helicopters
supplies between 12,6 and 10,8V
|battery monitor||LAM-5 lithium-battery-monitor|
little display to check battery voltage or %-load of the LiPo
|clock||radio controlled DCF-77 clock||conrad electronic|
|LiPo charger||Robbe Power Peak A4 EQ charger;|
stored in the shack; for charging the LiPo via 12V or 230/110V
|panel||self-designed 1mm stainless steel sheet – download: .dxf-zipped | .pdf|
Laser cutted and then fitted to the box with some little grinding.
Visit http://www.draftsight.com for free CAD software!
|available via sotabeams.co.uk|
|3D fasteners||used to securely mount the panel|
search for “GB4xM3″ in the QRP-shop
|BNC-SMA-BNC||adaptors to route the antenna connector through the side of the box||ebay|
|other stuff||switches, connectors of your choice;|
PowerPole connectors for charging the LiPo and powering the KX3 whilst in the shack.
|your trusted supplier|
- Some velcro between the KX3 and the box can give additional support.
- I used a textile tape at the inner edges of the big cutout not to scratch the KX3 😉
- HB9TVK made his own box!
- UPDATE 02/2014: I´ve added a BNC connector between the status switch and the ACC1 for a 2m antenna. A PTT push button has been built in as well (using ACC2).
- DK6AH made his own box!
- AK5SD made his own box!
my primitive circuit diagram:
Have fun and build your own solution to go portable! Comments appreciated!
