Equipment,  Fieldoperations

Fieldday in St. Johann

Franz and Tom have been on fieldday in St. Johann today. First of all big thanks to the organization-team for their great work!! Franz had to test his V-Beam-Antenna for a possible DX-Pedition next year…

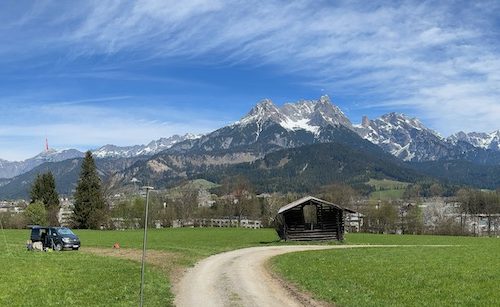

We set up the V-Beam in about 1,5 hours (for the first time quite fast – we think). 2 wires with 41 meters in lenght each and 13 meters feeder to the tuner, then a little bit of Coax to the transceiver. SWR was almost everywhere (from 10m to 160m) under 1:1,2. The main-mast was 12m high, the two masts in the middle of the wires 7m and the end-masts 10m. Unfortunately the photos don`t show the wire and mastsĀ  very well because everything is black, very thin and in front of the trees. One side goes in destination to the little chapel, the oder side parallel in front of the trees in the background.
We are very happy that the antenna works very well from 10 to 160m.

A few QSO`s could be logged:
UT0VE/P, SP80PZK, PB5X, ON6WL/P who was on SOTA, DL7UVO/P IOTA EU-057, SP9KAT

Watch the Gallery for more pictures!

73 and 55,
OE2SNL Franz and OE2ATN Tom
